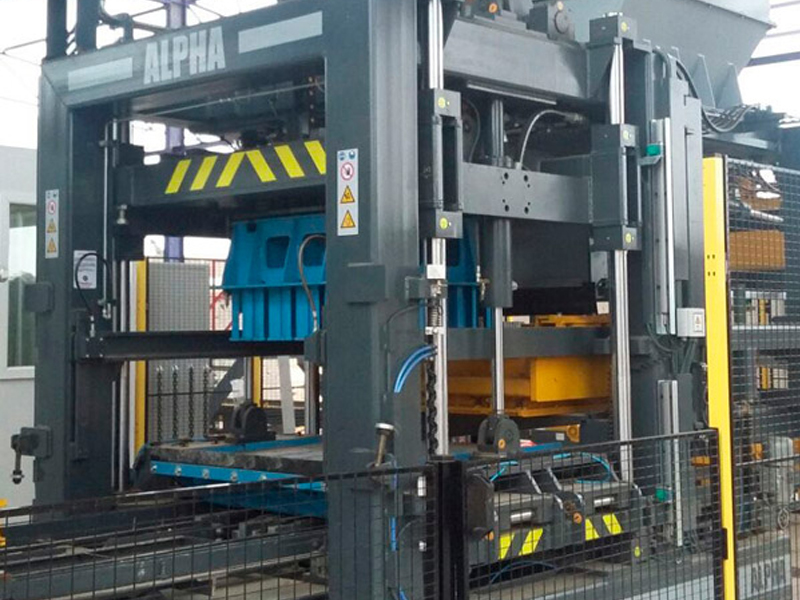

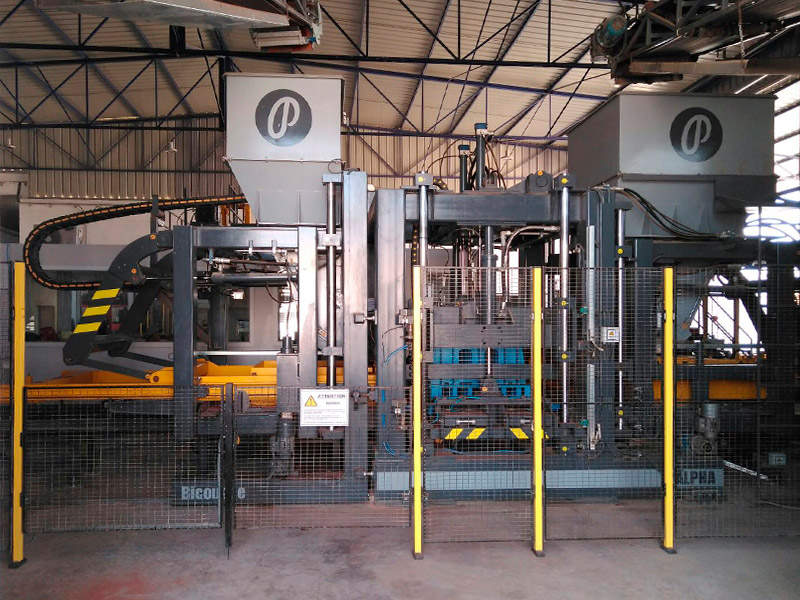

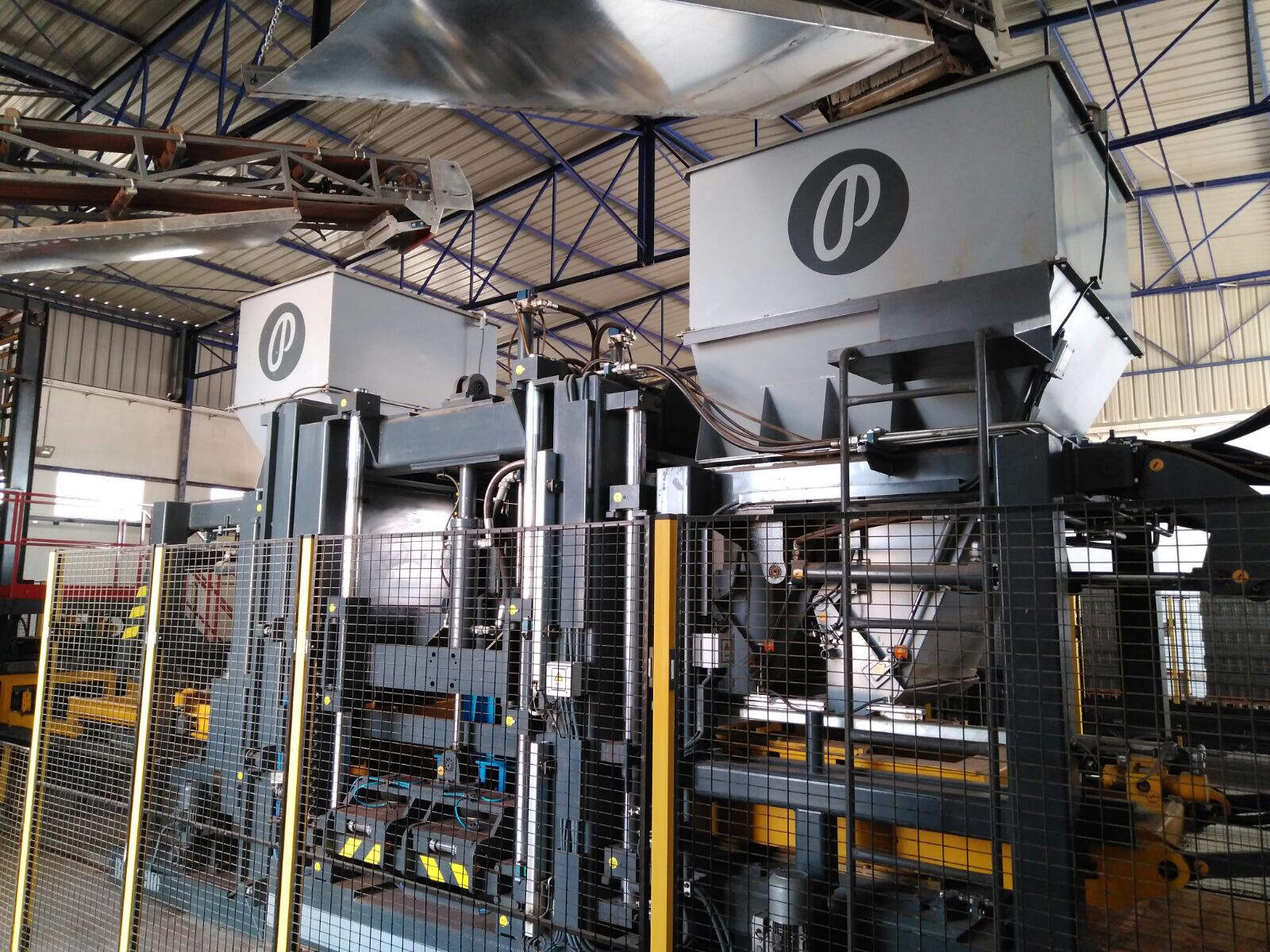

Block machines Compacta ALPHA press

Our latest development for very high outputs. Production of blocks, infill blocks, kerb stones, pavers and other precast concrete elements. Pallets up to 1400x1300 mm.

Productions of  aprox. 35.000 blocks 20x20x40 cm in 8 hours shift.

VMI 4 motor vibration system with electronic  synchronisation of masses. Fitted with iCOntrol.






VIDEO
TECHNICAL FEATURES
CIRCUITS
PRODUCTIONS

  • Production pallets: 1400x1300 mm max, 1200x1100 mm min
  • Manufacturing height: min 40 mm / max 350 mm
  • VMI 4 motor vibration system with electronic synchronisation of the masses
  • Vibrator strength: 0 to 30,000 daN
  • Vibration power: 60 Kw
  • Total power of the press: 120 Kw
  • Vibrating motors on the tamper head to improve the surface finish of the piece
  • Electrical adjustment of the product to be manufactured, without the need for tools
  • Hydraulic/pneumatic fastening of the mould

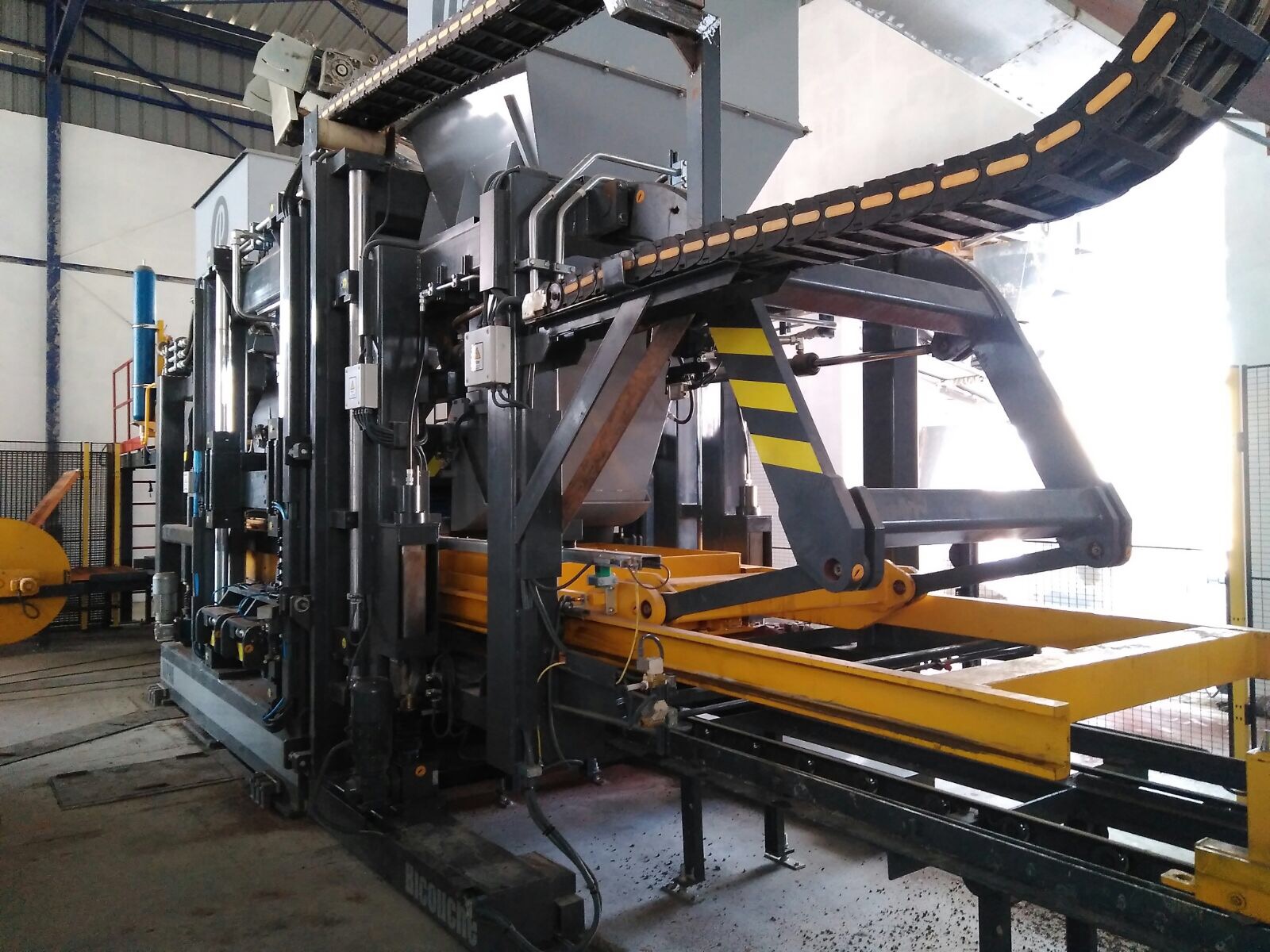

  • Concrete loader with beater and grid
  • iControl System
  • Remote WIFI / 3G connection

MAIN OPTIONS

  • Equipment for facing concrete
  • Press hydraulic brake
  • Manufacturing on metal pallets
  • Automatic vibrator lubrication
  • Belt dosing

E

Producciones basadas en un rendimiento Prensa al 100%

*Productions based on Press performance at 100%. Production data for guidance only, depending on the shape of the pieces, type of aggregates and possible circuit stops.
